    Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load

    Ask Lasest Price
    Brand Name : Skywell
    Model Number : carbon kevlar hinge
    Certification : SGS
    Price : USD5-20 Per Piece
    Payment Terms : Western Union, Western Union, MoneyGram, T/T,
    Supply Ability : 10000 pieces per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load

    Carbon Kevlar hinge with thickness to 0.5mm and 120kg static load

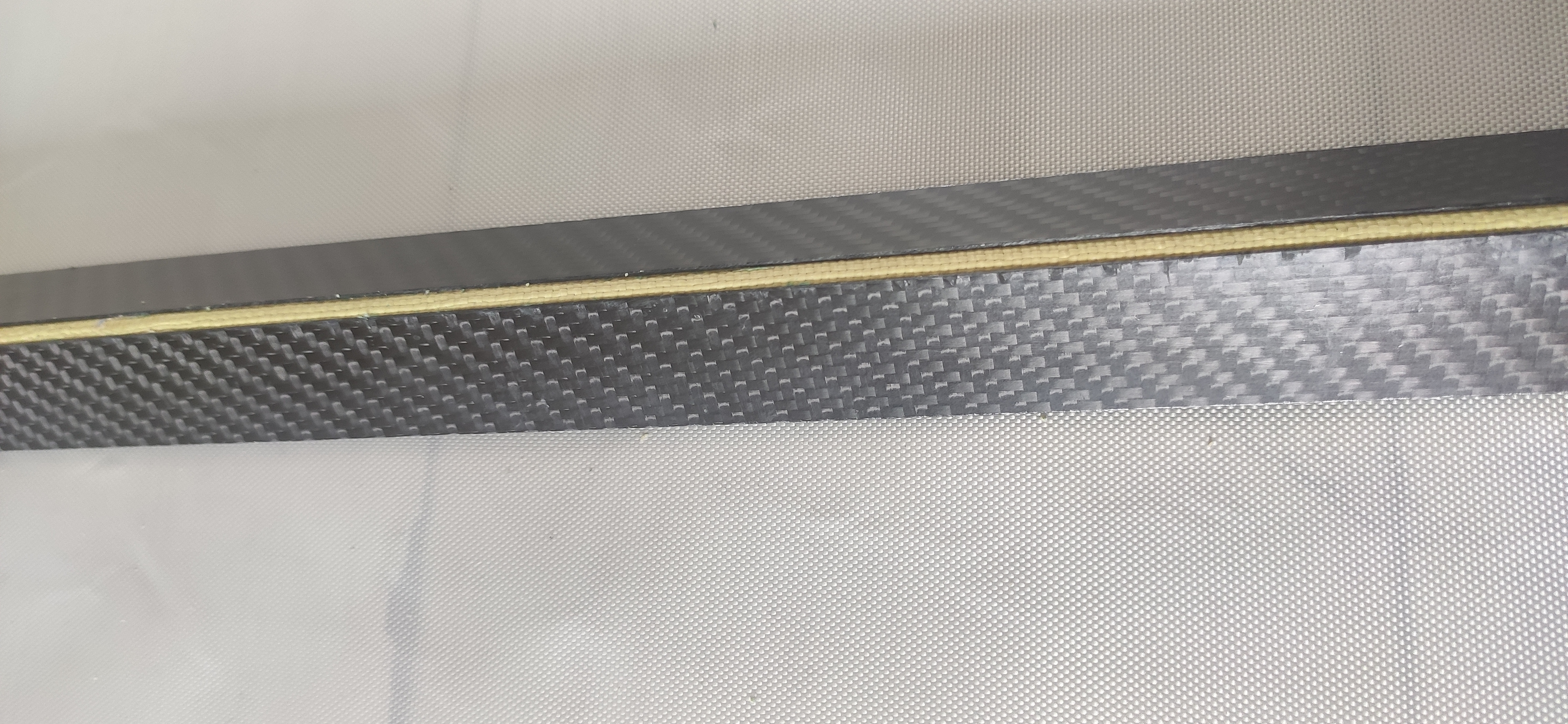

    Carbon Kevlar hinges consist of rigid wings and flexure units. The rigid airfoil is a woven carbon fiber or glass fiber carbon hybrid in an epoxy resin matrix. And telescopic units with single or double Kevlar versions.
    It can be rotated 360 degrees, bearing up to 200KG

    The 1.6mm hinge is specially designed for bonding assembly. All hinges exceeding this thickness can be glued, fixed with screws or both.

    We provide a selection of hinge configurations, however, hinges of various sizes can be customized. The length of the hinge ranges from 12mm to 1500mm, or the length of the panel hinge is from 100mm to 600mm, Wings has 18mm to 30mm , and can be pre-drilled and countersunk.


    Phsical Paremeter:

    1. Resin Type : Epoxy resin,carbon fiber , Kevlar
    2. Density :>1.65g /cm3
    3. Stiffness : >80-120 GPA
    4. Service Temperature : -40F To 248F
    5. Load : 120kg to 300kg

    Hinge Selection Flowchart


    WingsThickness (mm) ClosedFlex unitOthersLength
    18mm -25mm0.8Single Urethane Impregnated KevlarUltra thin, Bond only50-300mm
    18mm -25mm1.0Single Urethane Impregnated KevlarUltra thin, Bond only50-1000mm
    18mm -25mm1.6Single Urethane Impregnated Kevlarthin, Bond only50-1000mm
    18mm -25mm3Single Urethane Impregnated KevlarBond and screw assembly50-1000mm
    25mm3.5Double Urethane Impregnated KevlarBond and screw assembly50-1500mm
    18mm -25mm5Single Urethane Impregnated Kevlarcounterbore to accept screws50-1500mm
    25mm5.5Double Urethane Impregnated Kevlarcounterbore to accept screws50-1500mm


    Application :


    Ocean,shipping,Furniture,Auto parts etc
