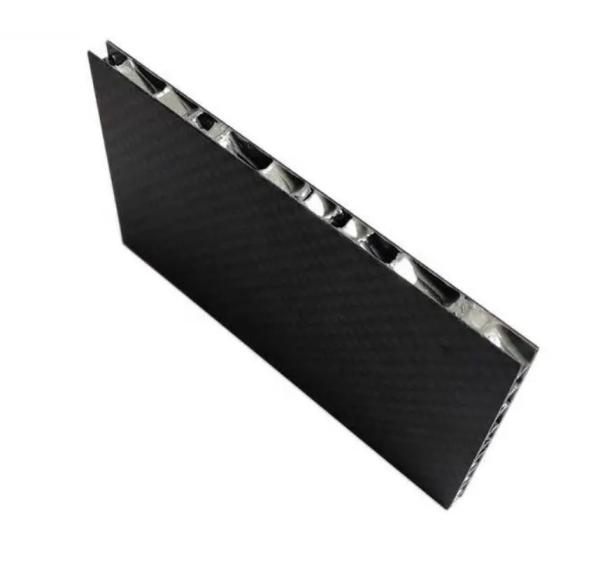

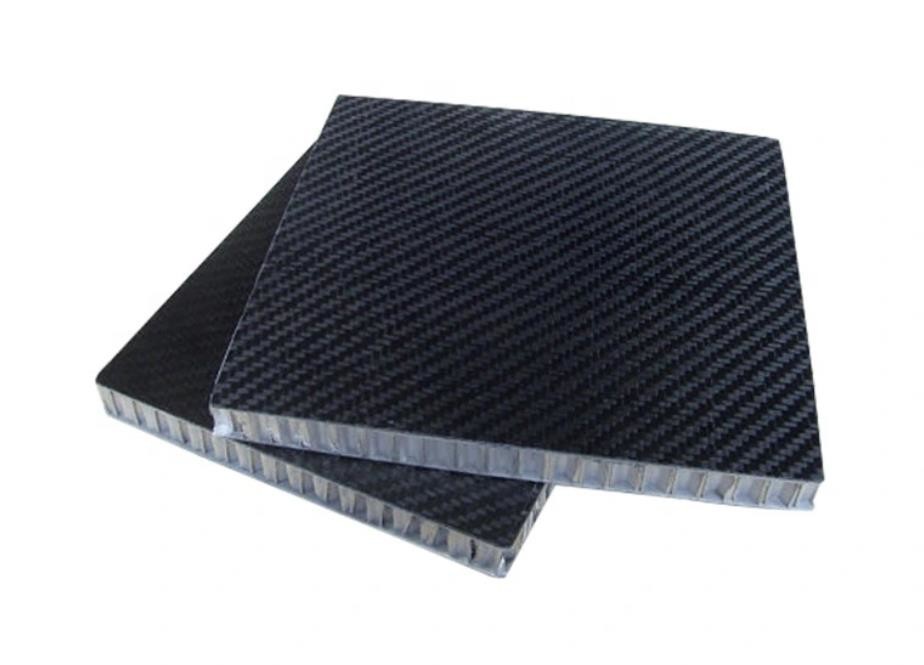

    Light Weight Carbon Fiber Products Honeycomb Sandwich Weave Carbon Fiber Plate

    Ask Lasest Price
    Brand Name : Skywell
    Model Number : Honeycomb plate
    Certification : SGS
    Price : USD15 Per Piece
    Supply Ability : 10000 pieces per month
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Light Weight Carbon Fiber Products Honeycomb Sandwich Weave Carbon Fiber Plate

    Light Weight Carbon Fiber Products Honeycomb Sandwich Weave Carbon Fiber Plate


    3K Twill carbon fiber sheet ,one construction parts with light weight, high density, high strength and high modulus. It saves lots of mould cost once take them as solid parts in structure . And CNC machining kinds of products you expect. Such as drone architecture , Powered toy car , medical,industry and so on .
    The plate size can be customized by your requirement , Maximum dimension : 800CM *300CM


    Phsical Parameter:

    Resin typeEpoxy
    Tolerances+/-1-2mm
    Density>1.65g/cm3
    Stiffness>80-120Gpa
    Bending Strength>80-120Gpa
    Tensile Strength>650Mpa
    Service Temperature-40F to 248F


    Customized dimension. Maximun dimension is 8x3 meters.
    Most Dimension as listing can be measured if needing size custom.
    400MM*400MM, 400MM*500MM, 500MM*500MM, 600MM*600MM, 600*1000MM, 1000*1000MM etc


    400*500*10mm500*500*10mm500*600*10mm
    400*500*15mm500*500*15mm500*600*15mm
    400*500*20mm500*500*20mm500*600*20mm
    400*500*30mm500*500*30mm500*600*30mm

    Application :


    Drone architecture ,Powered toy car , Medical,Industry etc.

    Light Weight Carbon Fiber Products Honeycomb Sandwich Weave Carbon Fiber PlateLight Weight Carbon Fiber Products Honeycomb Sandwich Weave Carbon Fiber PlateLight Weight Carbon Fiber Products Honeycomb Sandwich Weave Carbon Fiber PlateLight Weight Carbon Fiber Products Honeycomb Sandwich Weave Carbon Fiber PlateLight Weight Carbon Fiber Products Honeycomb Sandwich Weave Carbon Fiber Plate
